Noise Hunter® can visualize the noise sources on the picture of object with sound level contour map.
Defining the point of abnormal noise and its level will help you to analyze and take the countermeasure correctly.

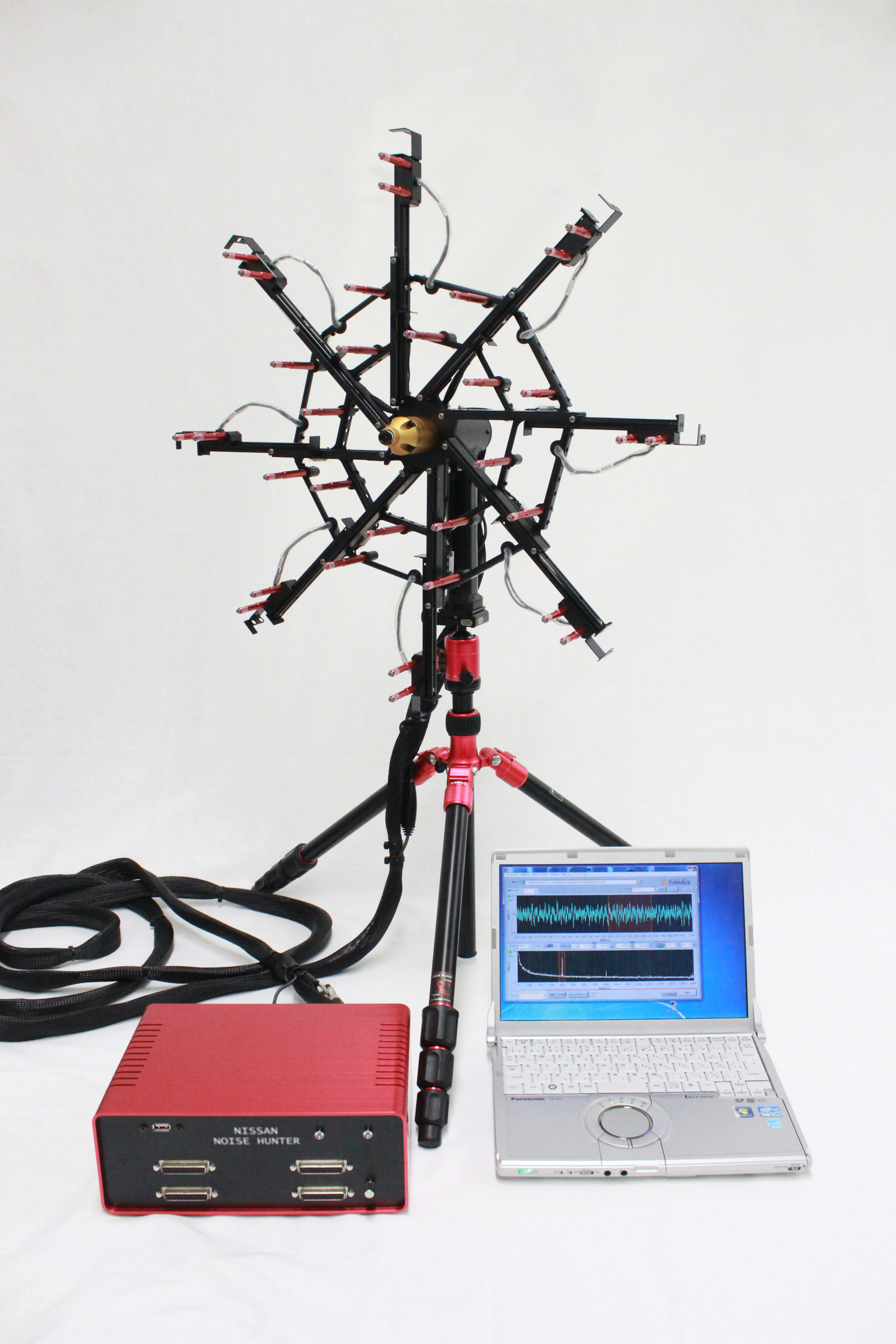

Noise Hunter® has the array with multiple microphones for beam forming and a camera for object picture.
Noise Hunter® displays sound level contour map by beam forming processing on the picture of the object taken at the same time.
Noise sources are defined by seeing the contour map.
Operation software is simple, and also designed to get highly precise noise source finding.
In addition , by using tachmeter the Engine rotation is able to be displayed simultaneousiy(optional item).

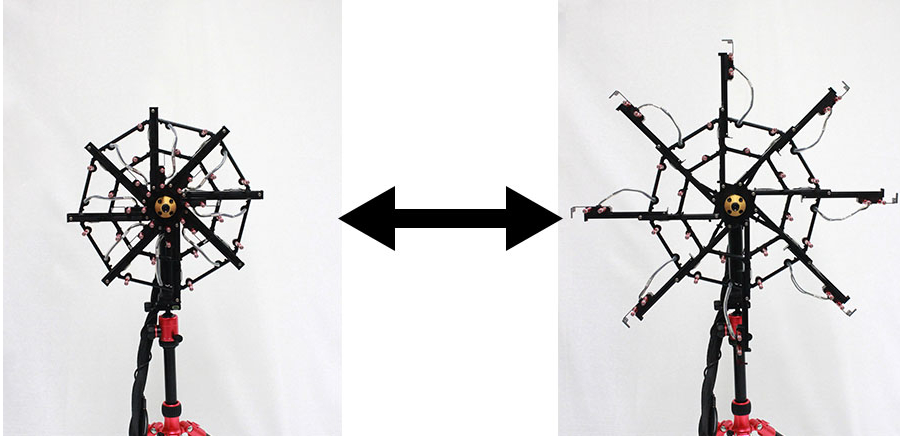

The array with multiple microphones is expandable to focus on the specific sound frequency range and improve the solution.

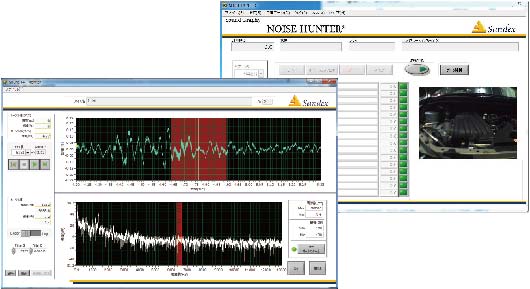

Operation processing software is simple, and can get results easily.
Measured data can be put the title and stored in the PC, so data will be recalled later and can be analyzed in the laboratory desk.

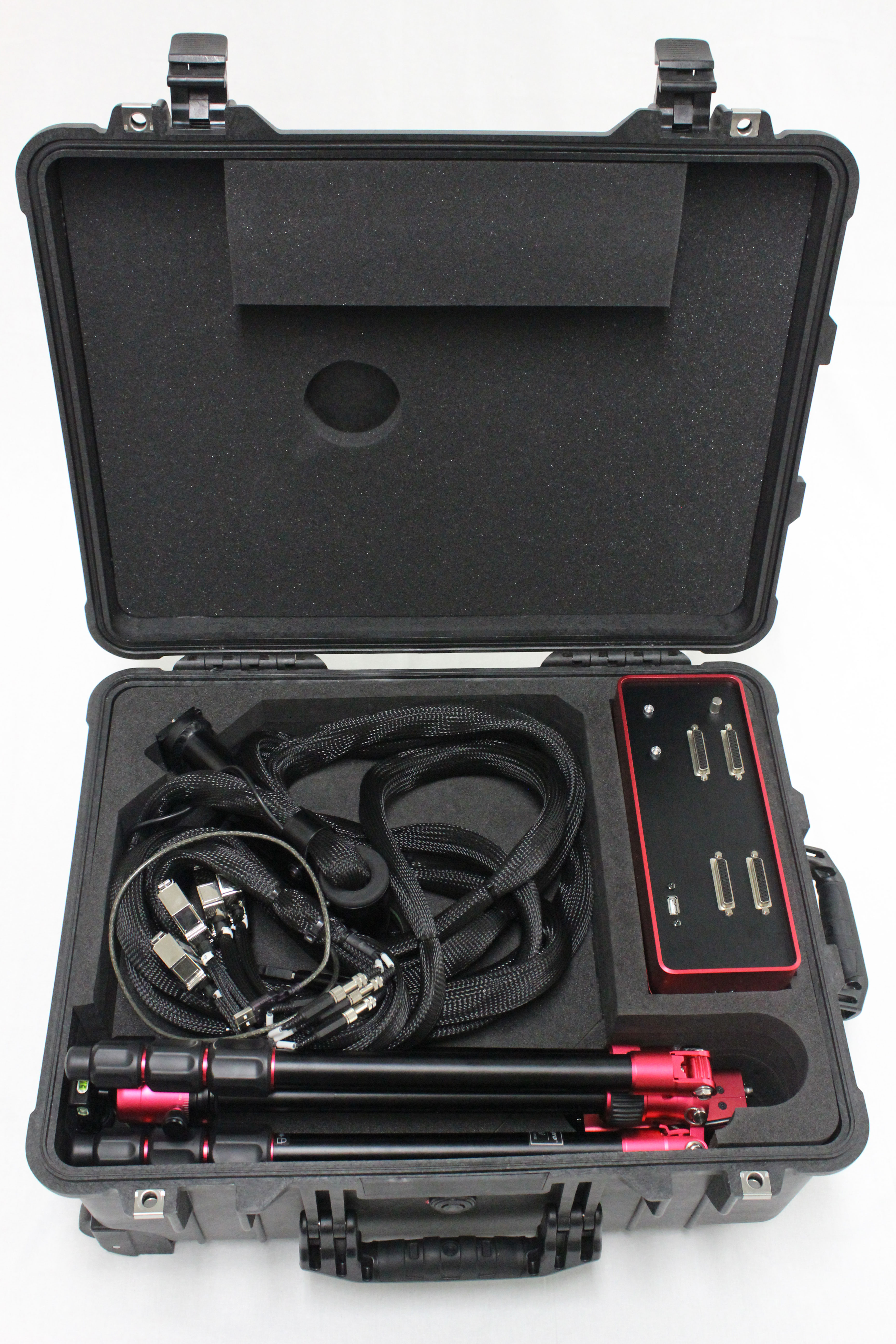

Noise Hunter® Software | |
---|---|
Spatial Processing Method | Beam Forming |
Measuring Physical Value | Sound Pressure |
Sound Frequency Range | 500Hz~12kHz |
Distance of Measurement(mm) | 300mm or more |
Data Storage | HDD |
Display Method of Analysis | Sound Pressure Contour Map Matching on Picture |
Analysis Range | Arbitrary Timing and Frequency |
Data Analysis Area | 598x432 pixels (equal to azimuth ±28deg, elevation ±20deg) |
Back Ground Picture | Automatic Shooting |
Playback | Available (with/without BPF) |
FFT Processing | Available for each channel |
Engine Rotational speed analysis | Optional Item(rotation pulse input meter) |
Filter | Narrowband |
Sound Pressure Contour Map | Automatic/Manual Maximum and Minimum level |
Data Format | *.jpg and original format *.dat |
Volume of Data | Approx. 8MB per second |
Recording time | Depends on the HDD capacity of the PC. |
Real-time Display | Unsupported |
Input Interface | |
---|---|
Data Conversion Unit | Real-time A/D Converter |
Number of Microphone Input | 32chs |
Input Type | Single End AC Coupling |
Frequency Specification | 20Hz~20kHz |
Dynamic Range | 100dB |
A/D conversion type | All channels Simultaneous Inversion |
A/D resolution | ΔΣ24bit |
Sampling Frequency | 32kHz |
Buffer Memory | 64MB |
External Input (OP) | 1ch (pulse input only) |
PC Interface | USB2.0 |
Cable Length | To array : 5.2m, To PC : 1m |
Operating Environment | 0~50℃ |
Dimensions/Weight | W:260mm×D:180mm×H:105mm/2.3Kg |
Power Supply | DC12V : AC100~240V AC adapter or Mobile Battery(OP) |
Others | Fanless, direct data save |
Recommended PC Specification | |
---|---|
Operating system | Windows7 64bit(Recommended ) |
CPU | intel CORE i5 or more |
RAM | 4GB or more |
HDD | 256GB or more (Around 25GB for software installation) |
Array Microphone | |
---|---|
Shape | Original Flat Surface Array (expandable) |
Number of Microphone | 32chs |
Type of Microphone | Free Field φ4.75mm Microphone |
Frequency Specification | 40Hz~15kHz(±2.5dB) |
Camera | 1/3"CMOS color camera (640x430) |
Dimension | φ300mm or φ600mm (expanded) |
Weight | 3.5kg (including camera and cables) |
Cable length(total) | 5.2m |
Others | Expandable Array for focusing on the Target Frequency Range |
